Building a multi-user system

Running a multi-user system

Running Naked Objects in a multi-user environment is as simple as starting the server program and then running some clients. As the clients will commonly be run on separate machines they need to told where to find the server. They also need to be told which naked object classes to make available to the user.

Running the server

The framework's org.nakedobjects.ObjectServer class is used to run the framework as a server and is started using the following command:

java -cp nakedobjects.jar:log4j.jar:<object class path>
		org.nakedobjects.ObjectServer

(This command should all be on a single line.)

Log4J is a logging framework from Apache, which is used for logging the running of the framework. The Log4J jar-file, the framework itself, and the directory containing the naked object classes, must all be specified in the command's classpath unless they are already specified in the system's CLASSPATH variable. In addition a copy of server.properties must be in the working directory, i.e. the directory where the above command is run. This file can be found in the conf directory in the Naked Objects distribution.

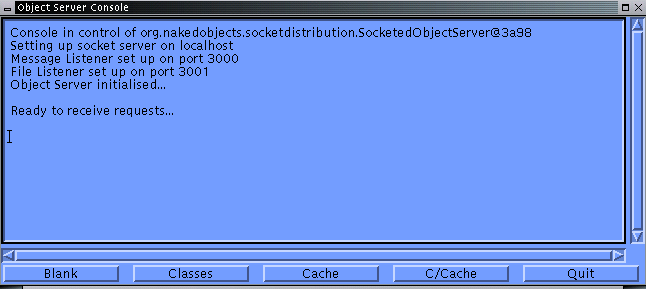

Aassuming the original server.properties configuration file was copied across, as the server starts it will install the default object store, a basic network service, and a graphical console for monitoring and controlling the server. All of these aspects of the server can be changedComplete configuration details are included in the Naked Objects distribution.. The following console screen will be shown allowing you to monitor the clients and to shutdown the server:

Running the client

Before running the client you must specify where the server is to be found, and tell the client which classes to make available to the user. This is done by editing the client's configuration file, client.properties. This file should copied to the working directory from the conf directory in the Naked Objects distribution. The line:

nakedobjects.socketed-proxy.address=localhost

should be changed, replacing localhost with the server's IP address or host name. For example, on our local server the line becomes:

nakedobjects.socketed-proxy.address=192.168.1.8

The naked object classes to be made available to the user are specified by appending the fully-qualified class names, separated by semicolons, to the line:

nakedobjects.classes=

For example, to configure the client to use the classes developed for the ECS application the following would be seen in the configuration file. (The backslashes at the end of each line indicate that the property is continued onto the next line.)

nakedobjects.classes=\
		  org.nakedobjects.example.booking.Customer;\
		  org.nakedobjects.example.booking.Booking;\
		  org.nakedobjects.example.booking.Location;\
		  org.nakedobjects.example.booking.Telephone;\
		  org.nakedobjects.example.booking.CreditCard;\
		  org.nakedobjects.example.booking.City

Before running the client the images directory, and its contents, should be copied into the working directory. The required class files should also be copied across and placed in the working directory (ideally in a specific subdirectory).

The framework's org.nakedobjects.Client class is used to run the framework as a client application. The class path is set up in the same way as the server so that the framework, Log4J and the naked object classes can be found:

java -cp nakedobjects.jar:log4j.jar:<object class path>
		  org.nakedobjects.Client

(This command should all be on a single line.)

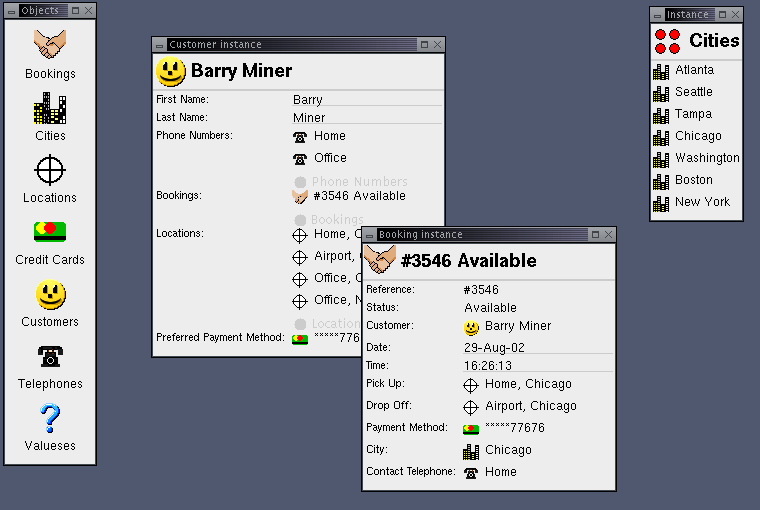

The application will appear as below.
